Economical Kraft Paper Tube Cutting Machine 1.5KW 270kg Weight

Fucheng Tiansheng paper tube machinery Co.,Ltd
Contact Now

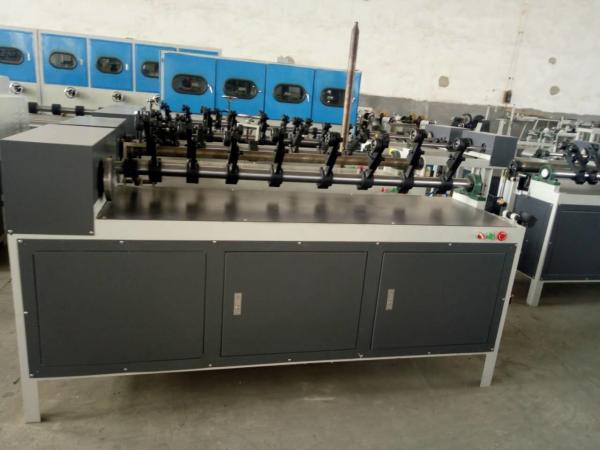

Economical Kraft Paper Tube Cutting Machine 1.5KW 270kg Weight

  • 1
  • 2

Brand Name : TIANSHENG

Model Number : CNC

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1SET

Price : Price negotiation

Payment Terms : T/T

Supply Ability : 5SETPERMONTH

Delivery Time : 45DAYS

Packaging Details : Stretch film

diameter : Φ30-100(mm)

Paper tube thickness : 1-6(mm)

Length of cut pipe : 70-1500(mm)

Cutter number : 8 groups (standard)

Total power : 1.5KW

Total weight : 270kg

Contact Now

Medium-sized multi-tool pipe cutting machine



main tech parameter

  • Mother tube 1500 mm
  • Cut tube thickness 1--6 mm
  • Cut tube diameter Φ30-100(mm)
  • Cut tube no. 8sets
  • Control model button control operate
  • Motor power 1.5KW



Machine parameters



Technical parameter  Control system

Paper tube diameter
Φ30-100(mm) Major Executing Devices (Contactors, etc.)
CHINT

Paper tube thickness
1-6(mm)
Cylinder element
CEHNGDI/SUOPAI/
TIANAO

Length of cut pipe
70-1500(mm)

Cutter number

8 groups (standard)


Working air pressure
0.6MPa

Control mode

Button click


Main motor power
1.5KW

Number of operators
1
 Size(mm) Configuration device

Host Size:L*W*H
2000*800*1020
Charge

Manual

Cutter specification
2*105*43mm
Blanking

Manual

Total weight
270kg





Our products mainly include:

Slitting rewinding Machine


Paper Tube Machine



Paper Core Cutting Machine


Paper Corner Machine





Economical Kraft Paper Tube Cutting Machine 1.5KW 270kg Weight
